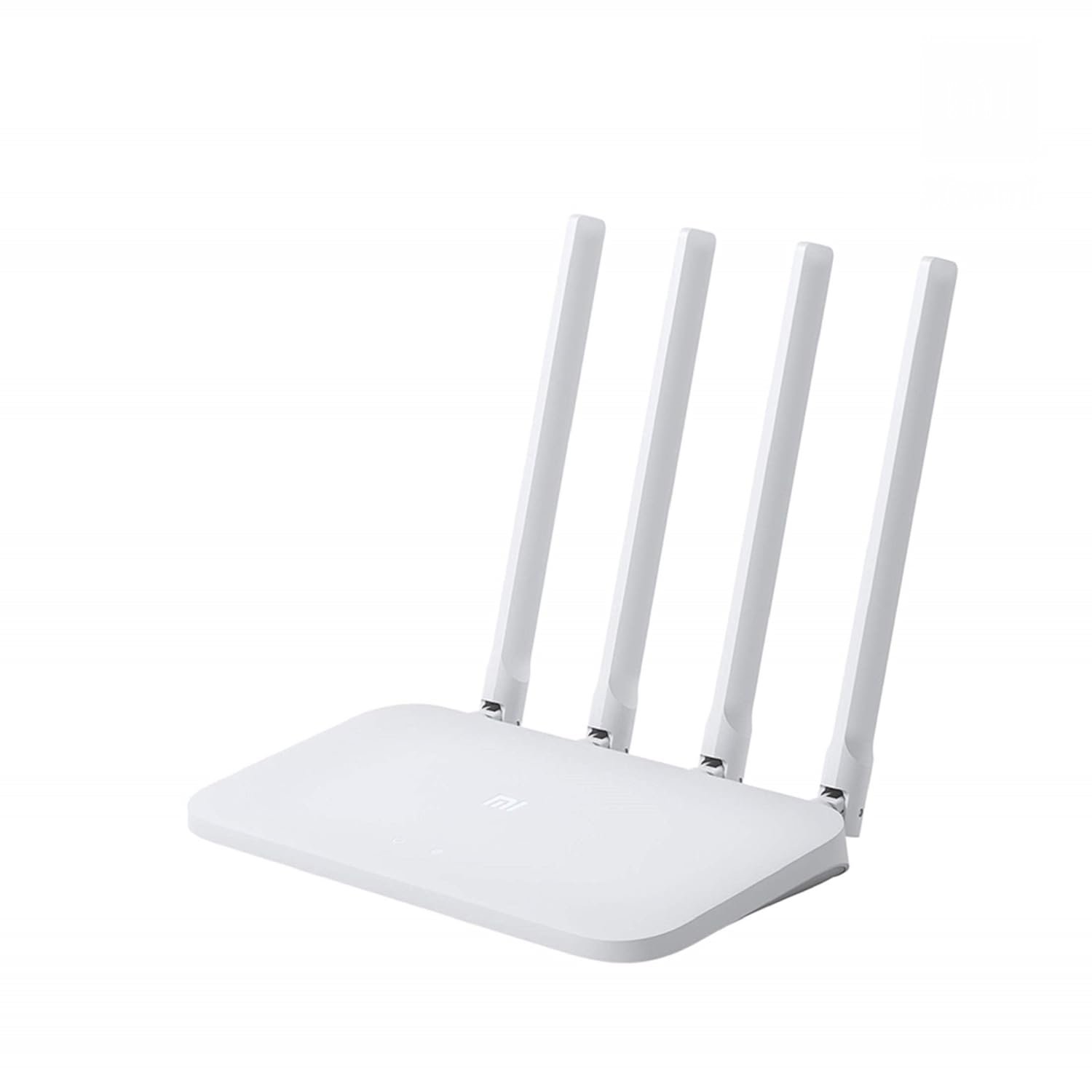

Xiaomi Mi Smart Router 4C

• 2.4 GHz Wi-Fi with up to 300Mbps Speed, Ideal for video streaming and web browsing. ROM : 16MB Nor Flash. Management application : Supports web, iOS, and Android
• 4 High-performance antenna for better speed & coverage. Operating temperature: 0–40°C. Storage temperature:-40–70°C
• Xiaomi Mi Smart Router 4C Control your network from Anywhere, Anytime with help of Mi Wi-Fi app
• QoS (Quality of Service) Manage and allocate bandwidth as per activity requirements
• Parental Control-Control time on internet and content on connected devices
• Improve network speed with Wi-Fi optimization
• Coverage Area: up to 400 Sqft

• Mi Router 4C (White)
  Hardware configuration

  Processor MT7628DA

  Internal memory 64MB DDR2

  2.4GHz Integrated LNA and PA

  5GHz Not supported

  Heat dissipation Natural heat dissipation

  Operating humidity: 10%–90% RH (no condensation)

  Storage temperature-40–70°C

  Protocol standards IEEE 802.11b/g/n IEEE 802.3/3u

  ROM 16MB NorFlash

  2.4GHz Wi-Fi 2×2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps)

  5GHz Wi-Fi Not supported

  Antennas 4x external single band antennas

  Operating temperature0–40°C

  Storage humidity 5%–90% RH (no condensation)

  Warranty information 1 year whole device warranty

  Certification standards GB9254-2008 YD/T993-1998 GB4943.1-2011 GB9254-2008 YD/T993-1998 GB4943.1-2011″

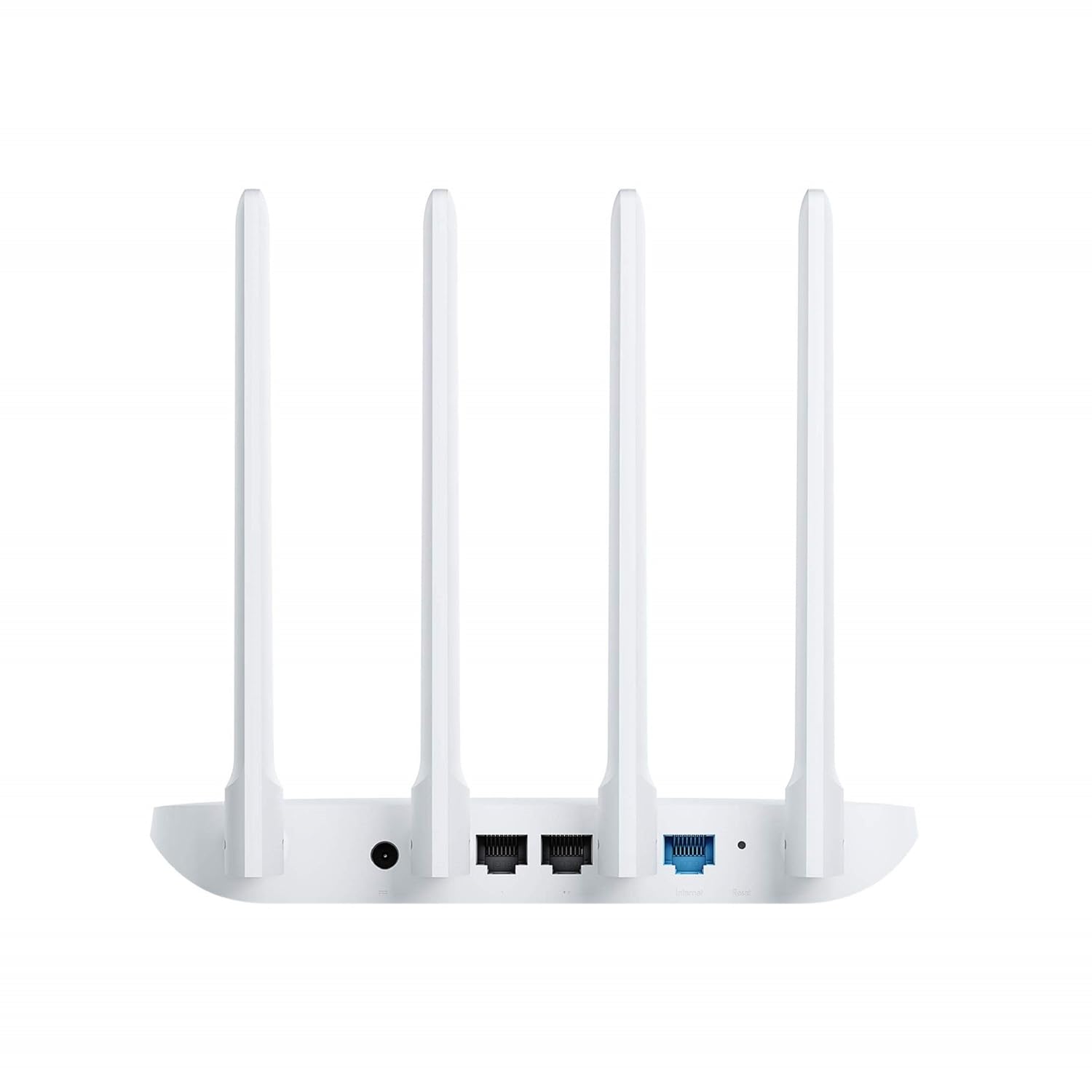

  Hardware interface

  Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX)One system factory settings reset buttonOne orange/blue/purple system status light; one blue external network interface status lightOne 10/100M self-adaptive WAN port (Auto MDI/MDIX)One power input interface
  Wireless specifications

  single band2.4GHz

  Modulation

  11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15

  Reception sensitivity11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm
  Software specifications

  Operating systemMi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software

  Xiaomi Mi Smart Router 4C Wireless securityWPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding

  Management application Supports web, iOS, and Android
  Package contents

  User manualPower adapter Xiaomi Mi Smart Router 4C
