Ports: 48 x Gigabit Ethernet (PoE+) SFP Ports: 2 x 1G SFP, 2 x 10G SFP+ PoE Power Budget: 500W Switching Capacity: 70 Gbps Forwarding Rate: 104.16 Mpps Layer 2 Features: LACP, STP/RSTP, IGMP Snooping, 802.1X Control Management: UniFi Network Controller Cooling: Fanless Mounting: Rackmount (1U) Warranty: 1-Year

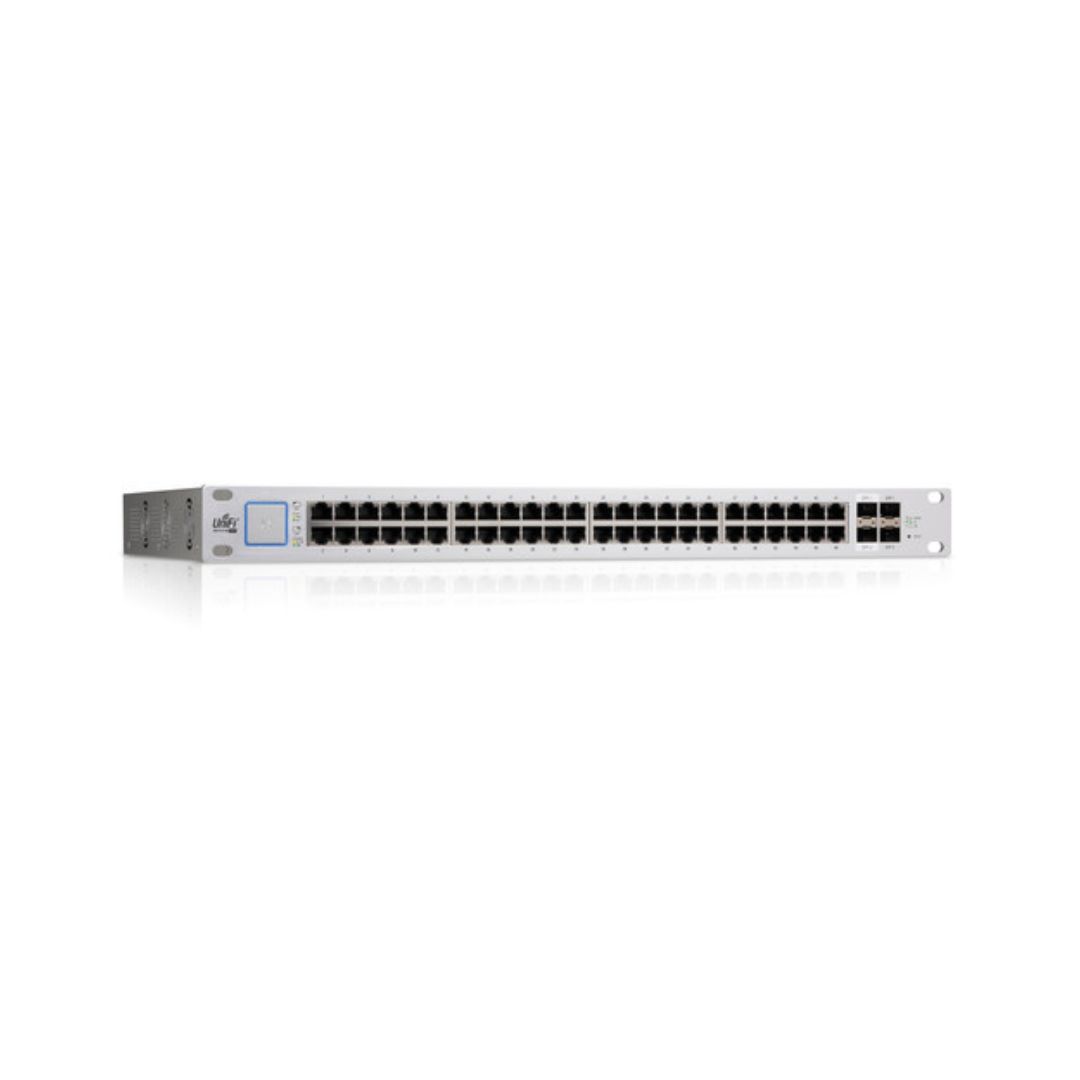

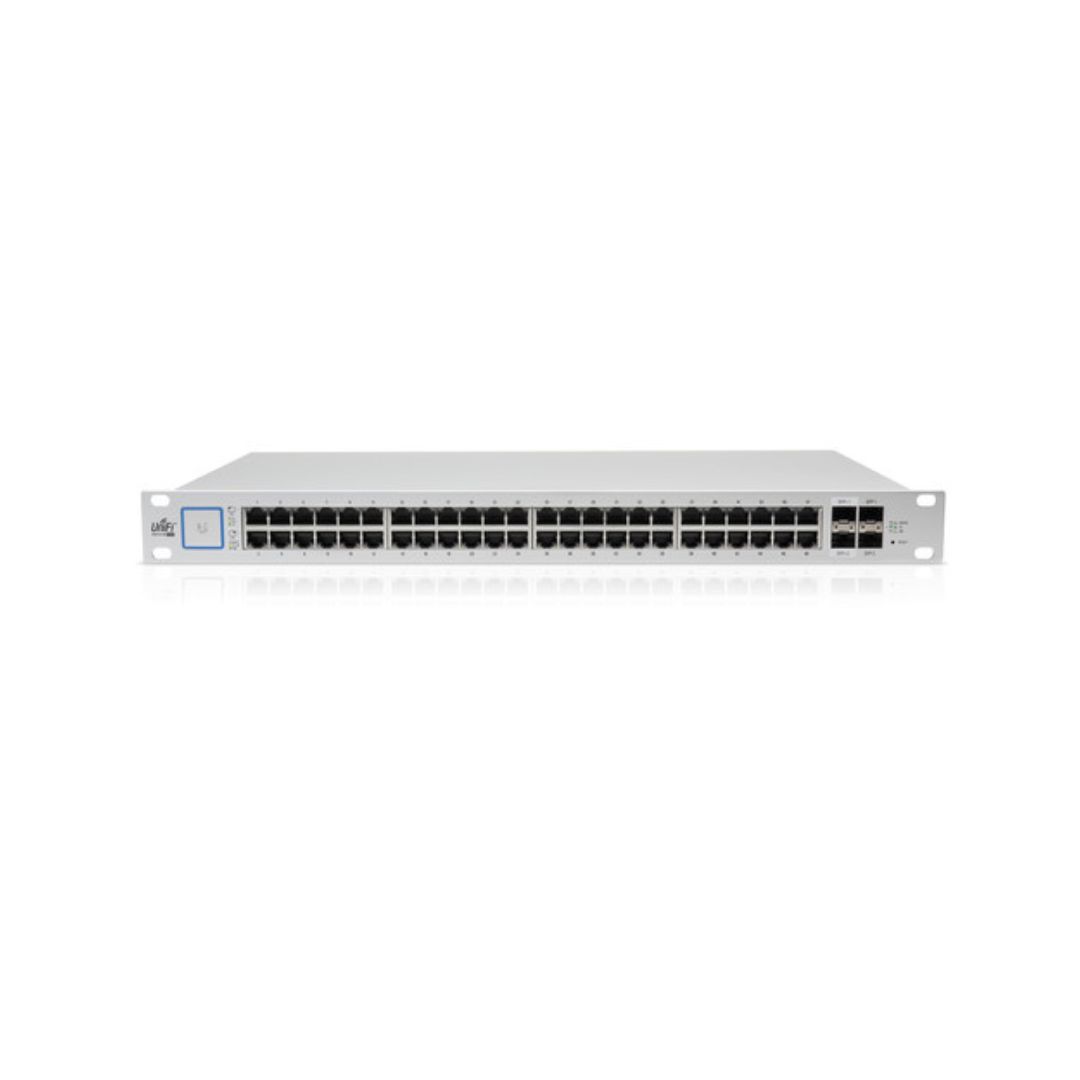

The Ubiquiti UniFi Switch US-48-500W is a fully managed Layer 2 PoE+ switch designed for enterprise networks. It features 48 Gigabit Ethernet ports, all supporting IEEE 802.3af/at PoE+ standards, providing up to 34.2W per port to power devices such as IP cameras, VoIP phones, and access points. Additionally, it offers 2 x 1G SFP ports and 2 x 10G SFP+ ports for high-speed fiber uplinks, ensuring flexible and scalable connectivity options.
With a non-blocking throughput of 70 Gbps and a forwarding rate of 104.16 million packets per second (Mpps), the US-48-500W ensures efficient data processing and minimal latency. It supports advanced Layer 2 features such as Link Aggregation Control Protocol (LACP), Spanning Tree Protocol (STP/RSTP), IGMP Snooping, and 802.1X port-based network access control, providing robust network management capabilities.
Managed via the UniFi Network Controller, the US-48-500W integrates seamlessly with other UniFi devices, allowing for centralized control and monitoring. The controller provides an intuitive interface for configuring and managing network settings, monitoring performance, and performing firmware upgrades remotely.
Designed with fanless cooling, the US-48-500W operates silently, making it suitable for noise-sensitive environments. Its compact form factor (1U) ensures easy integration into standard server racks. The internal power supply supports a wide voltage range (100-240V AC), providing flexibility in deployment.
The US-48-500W features a durable metal enclosure with dimensions of 485 x 374.6 x 43.7 mm (19.09 x 14.75 x 1.72″) and weighs 3.6 kg (7.9 lbs). Its robust construction ensures longevity and reliable operation in demanding environments.
To maximize performance, ensure the switch is placed in a well-ventilated area and free from obstructions. Regularly update the UniFi Network Controller to access the latest features and security enhancements.
RK1000
| SKU | US-48-500W |
| Brand | Ubiquiti |
