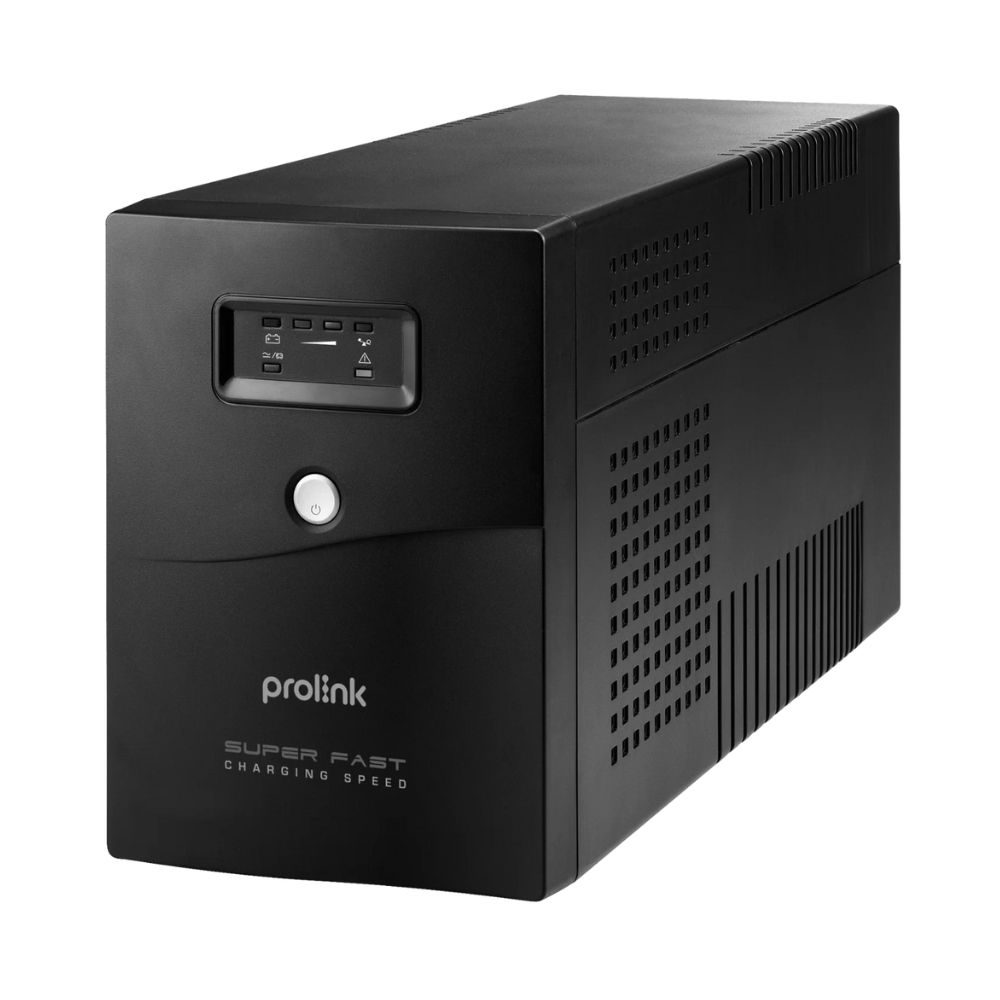

ProLink Line Interactive UPS Super Fast Charging Speeds (650VA) Capacity 650VA Dimension (mm) 279 x 101 x 142 (D x W x H) Weight (kg) 4.2 INPUT Nominal Voltage 230VAC Voltage Range 140 - 300 VAC ± 5% Nominal Frequency 50 or 60Hz (Auto sensing) OUTPUT Voltage Regulation ± 10% Frequency…
| Capacity | 650VA |
| Dimension (mm) | 279 x 101 x 142 (D x W x H) |
| Weight (kg) | 4.2 |
INPUT
| Nominal Voltage | 230VAC |
| Voltage Range | 140 – 300 VAC ± 5% |
| Nominal Frequency | 50 or 60Hz (Auto sensing) |
OUTPUT
| Voltage Regulation | ± 10% |
| Frequency | 50 or 60Hz ± 1Hz |
| Transfer Time (typical) | 2 – 6ms |
| Waveform | Simulated Sinewave |
BATTERY
| Number of Battery | 12 V/8.2 Ah x 1 |
| Recharge Time (typical) | 2-4 hours recover to 90% capacity |
ALARM & INDICATORS
| LED Display | AC Mode – Green Lighting Battery Mode – Yellow Flashing every 10 seconds Overload – Red Flashing every second Fault – Red Lighting |
| Sounding | Battery Mode – Sounding every 10 seconds Low Battery – Sounding every second Overload – Sounding every 0.5 second Battery Replacement Alarm – Sounding every 2 seconds Fault – Continuously sounding |
Rear Panel
|
| SKU | PRO700SFC |
| Brand | Prolink |
