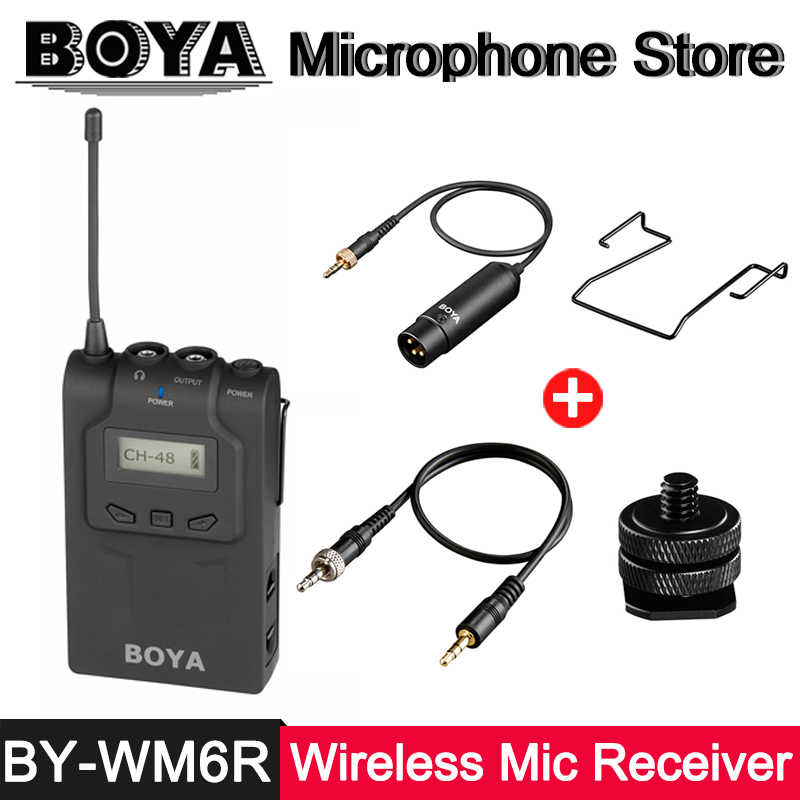

BOYA BY-WM6R UHF Wireless Microphone Receiver
Introduction
-
The BOYA BY-WM6R is a compact and rugged beltpack audio receiver, it work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T( Transmitter sold separately).
-
The BOYA BY-WM6R is designed to be mounted on top of a camcorder or video capable camera
-
For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable. An optional stereo to dual XLR cable is available for connecting to a professional camera. The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder.
-
The beltpack can be wirelessly synced with the transmitter for quick setup, and also offers simple menu operation with an illuminated graphic display for more control options.
Features
-
48 channels UHF frequencies for interference-free operation
-
User-friendly menu, easy set up Wirelessly syncs with transmitter (transmitter not include)
-
Work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T.
-
Advanced OLED Display
-
Compact and rugged lightweight plastic housing
-
Operation range can reach up to 100m
-
Powered by one Two AA Batteries (battery not include)
-
Includes 3.5mm locked-plug audio cable and a standard 3.5mm headphone jack
-
Includes shoe mount
Specifications
-
Oscillator type: PLL Synthesized Control Oscillator
-
Antenna: Flexible
-
Channel group: A or B
-
Carrier Frequency Range: 576.4 MHz-599.9 MHz (Channel group: A )
-
568.6 MHz-592.1 MHz (Channel group: B )
-
Audio input connector: 3.5mm mini jack
-
Signal-to-noise ratio: 80 dB
-
Distortion: 0.8% (-60 dBV, 1 KHz input)
-
Earphone output level: 60 mW, 32 Ohms/1KHz
-
Audio output level: 120 mV
-
Power supply: Two AA batteries
-
Accessories: 3.5mm audio cable, shoe mount
-
Dimensions: (H x W x L) 7.7” x 3.1” x 1.1”(19.6 x 8.0 x 2.9cm)
-
Weight: 130g (4.6 oz) without batteries
Compatibility
-
Work as Receiver A, compatible with BY-WXLR8, BY-WHM8, BY-WM6 transmitter and BY-WM8T.
Package
-
1 x Receiver
-

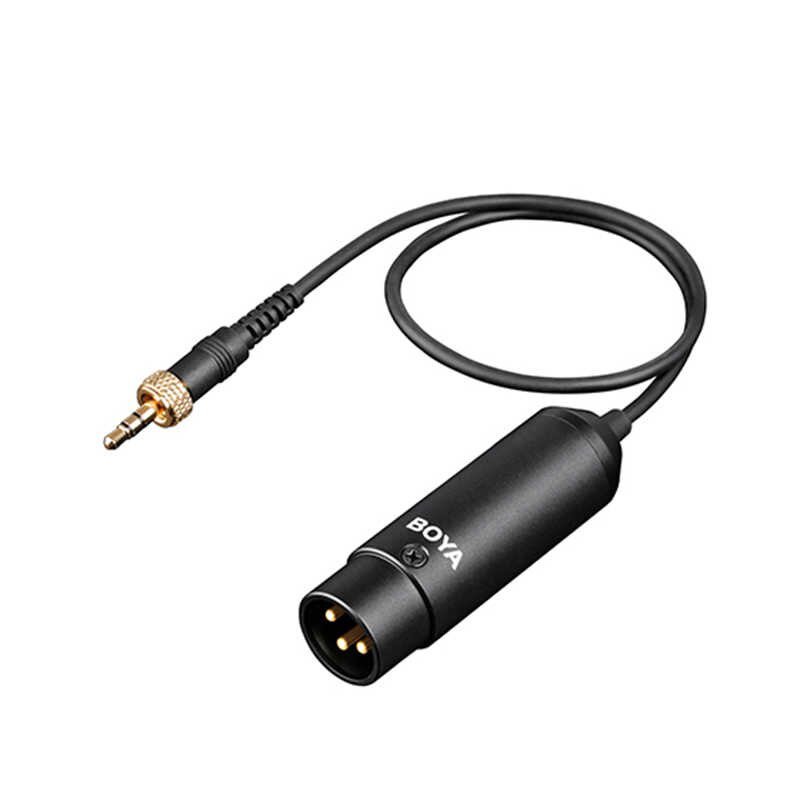

1 x XLR output cable
-

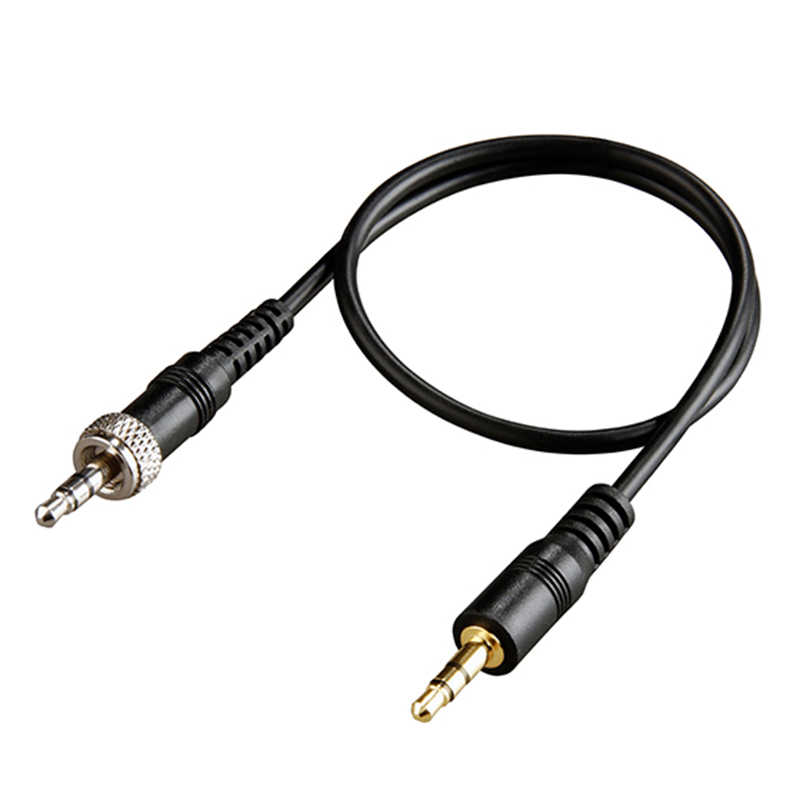

1 x 3.5mm mini plug cable
-
1 x Belt clip
-

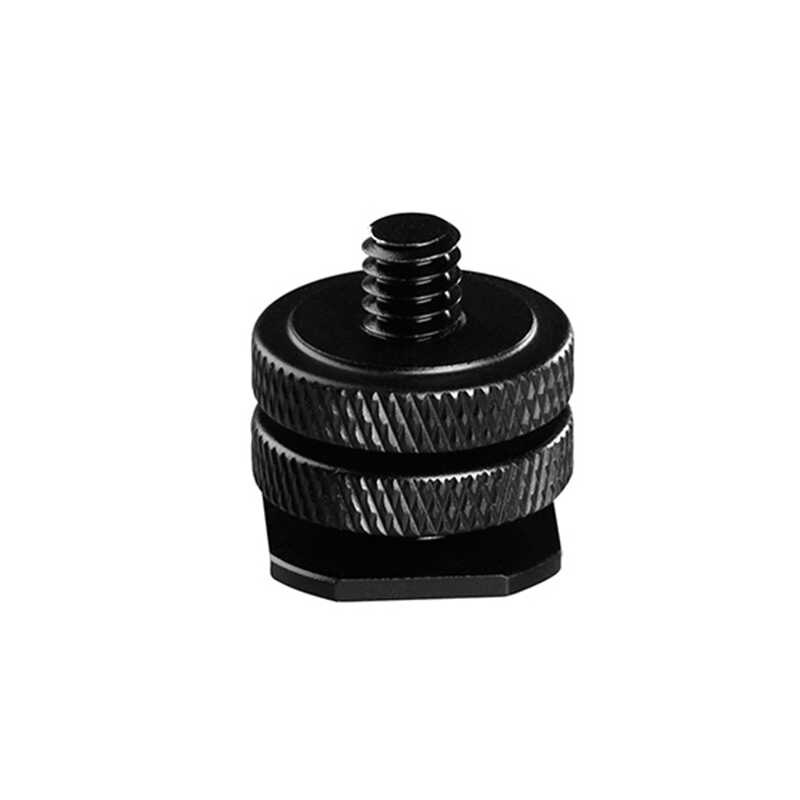

1 x Shoe mount adapter
